Pocket Door Technical Info
Information:
Why buy a Pocket Door Kit? The Advantages are here...
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371530.jpg?t=1710010921)
Pre-cut galvanized steel uprights and horizontals make up the pocket, so there is no risk of warping as you would have with wood.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371533.jpg?t=1710010921)
Simple to use brackets screw straight onto the stud work and double as a way to position the plasterboard.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371534.jpg?t=1710010922)
We have a Pocket door kit to fit most UK standard door sizes. You can buy a kit to fit your exact door size so there is no cutting, trimming or adjusting required to make the pocket fit.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371544.jpg?t=1710010922)
There is no floor track so you can continue the floor surface through the door with no threshold. It has an adjustable pocket entrance guide so you can use 35mm or 44mm door thickness.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371546.jpg?t=1710010922)
The door brake, made from special spring steel, ensures that during normal use the door will not slam against the door post.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371547.jpg?t=1710010922)
Our runners have carbon steel 'sealed for life' bearings for years of sliding pleasure.
Size

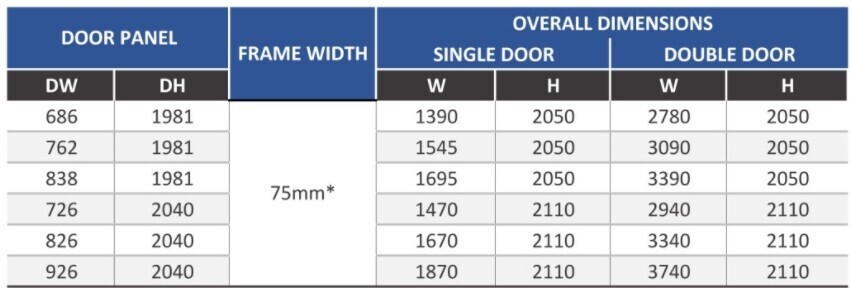

Choosing your Pocket Door Kit
The Pocket Door Kit comes in 6 specific sizes, each made for a standard UK door size so you can choose the door you want and it fits first time, every time!
Max door weight is 60kg which covers most standard doors, so you can choose you door panel size from the table below or if the overall space is the more important factor then find the nearest and you will see what door size you need to purchase. It's really simple!
Timber Door
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371572.jpg?t=1710010923)

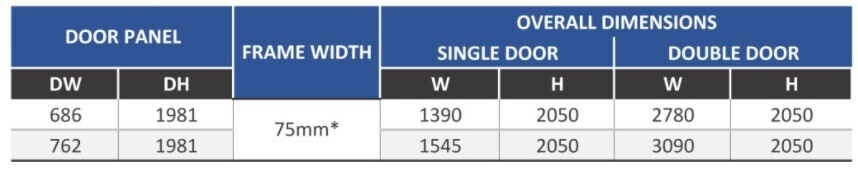

Glass Door
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371574.jpg?t=1710010924)

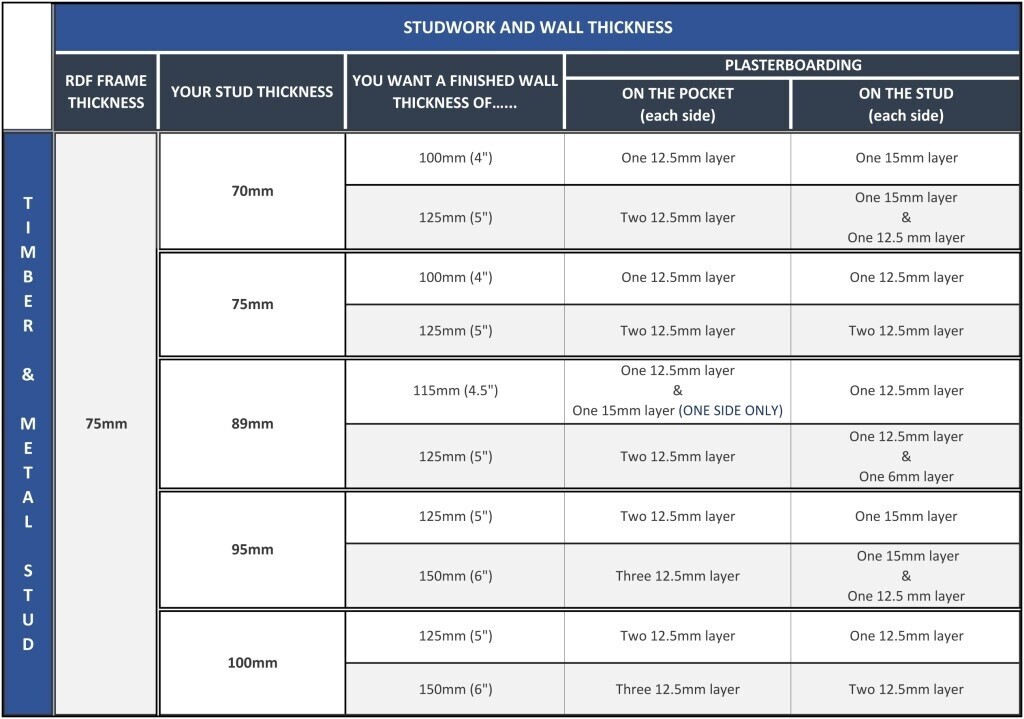

Studwork And Thickness
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371577.jpg?t=1710010924)

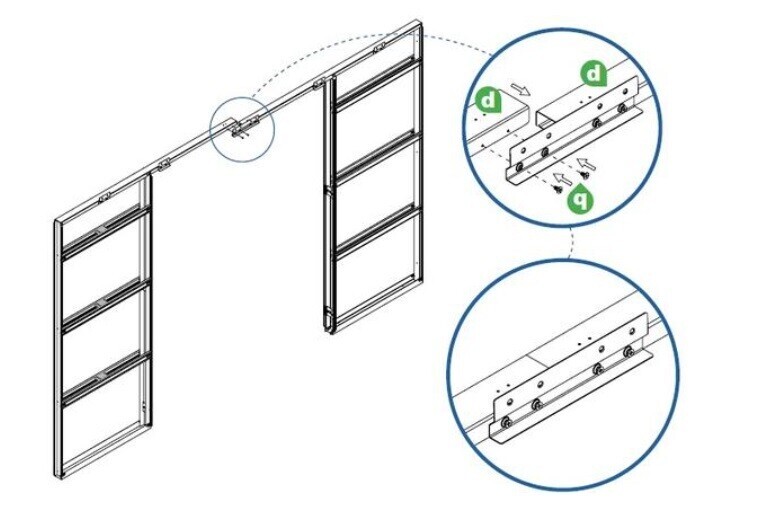

Door Installation
Take a look at this Rocket Pocket Door video clip below or check out our installation instructions to help you with installing your pocket door. The instructions include a list of tools you will require. View the video or scroll down to see how you create the linings.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371582.jpg?t=1710010924)

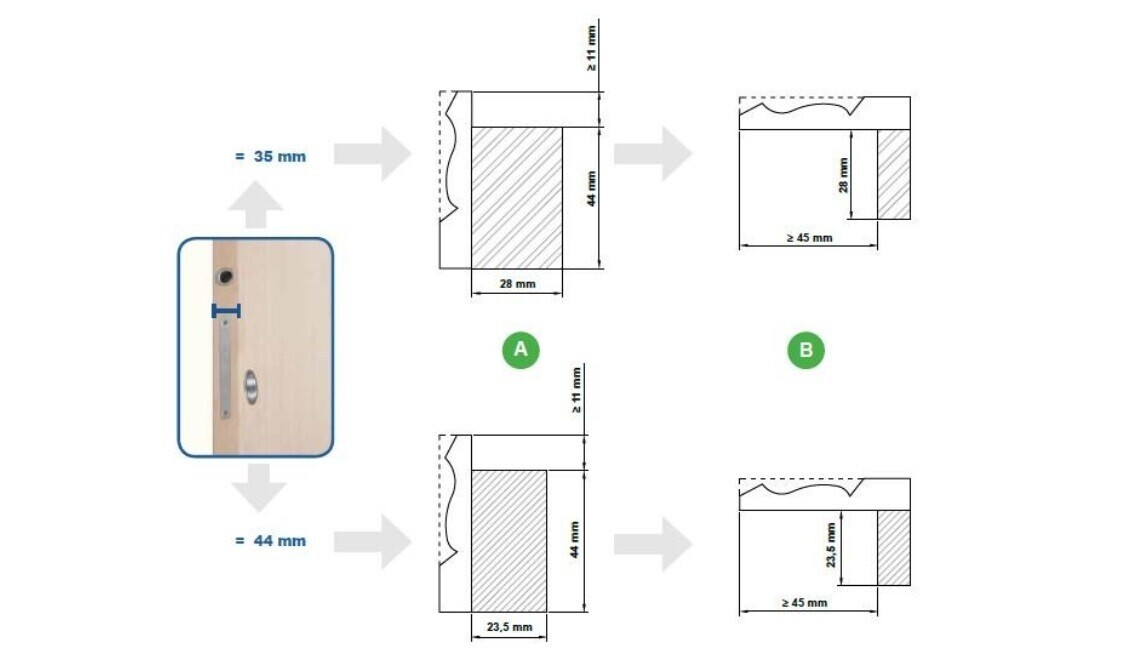

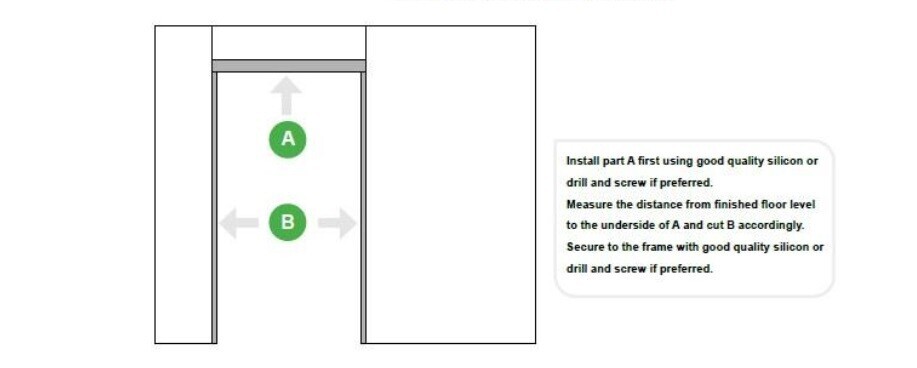

How To Create Linings For The Pocket Door System
Linings and architraves are usually made to match the door finish so below you will find an explanation of how to do this in a quick and easy way.
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371584.jpg?t=1710010924)
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371585.jpg?t=1710010924)

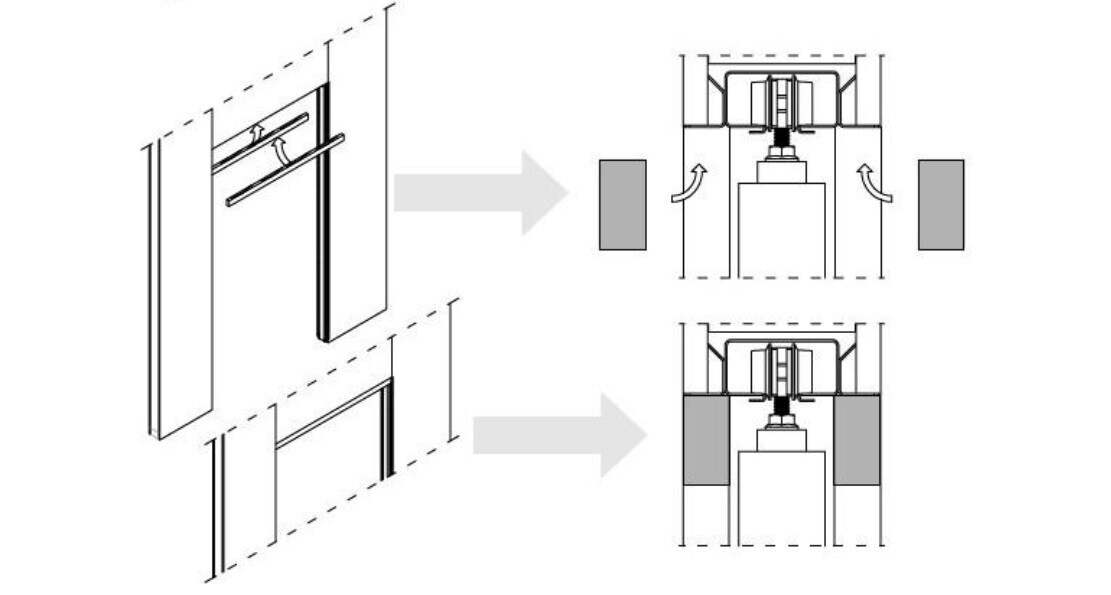

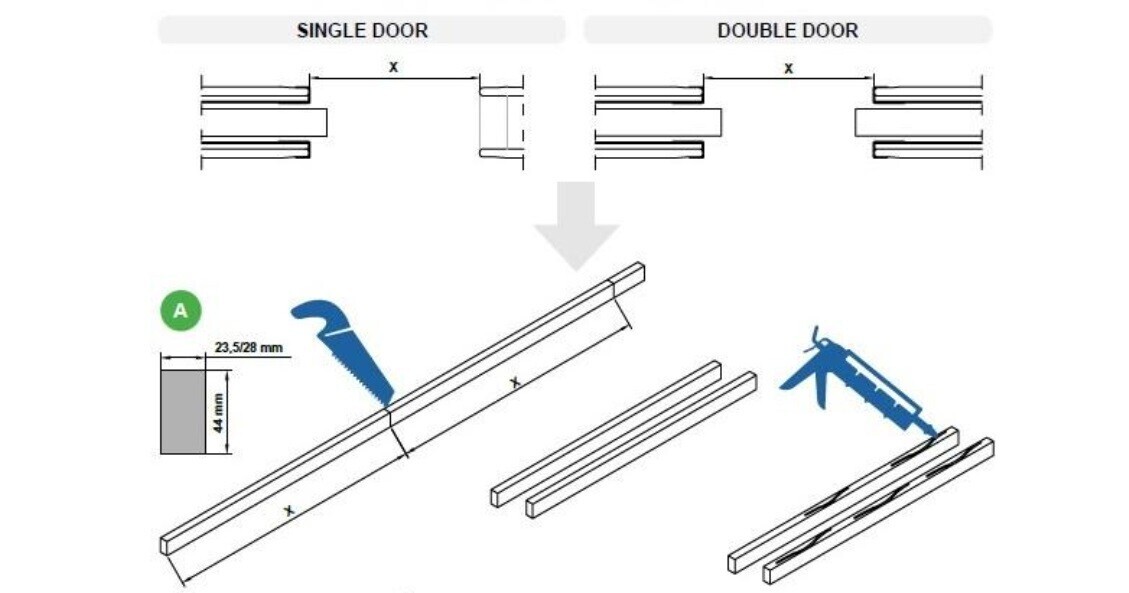

Measuring Part A And Fixing To The Frame
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371586.jpg?t=1710010924)
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371590.jpg?t=1710010924)

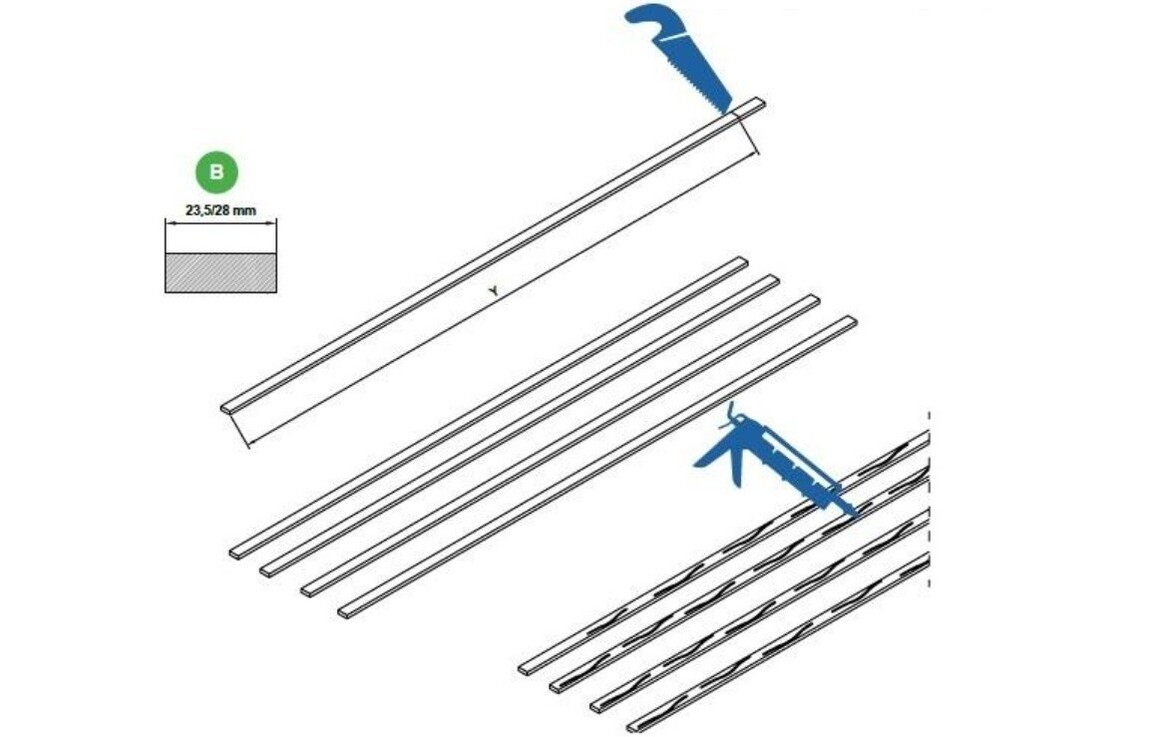

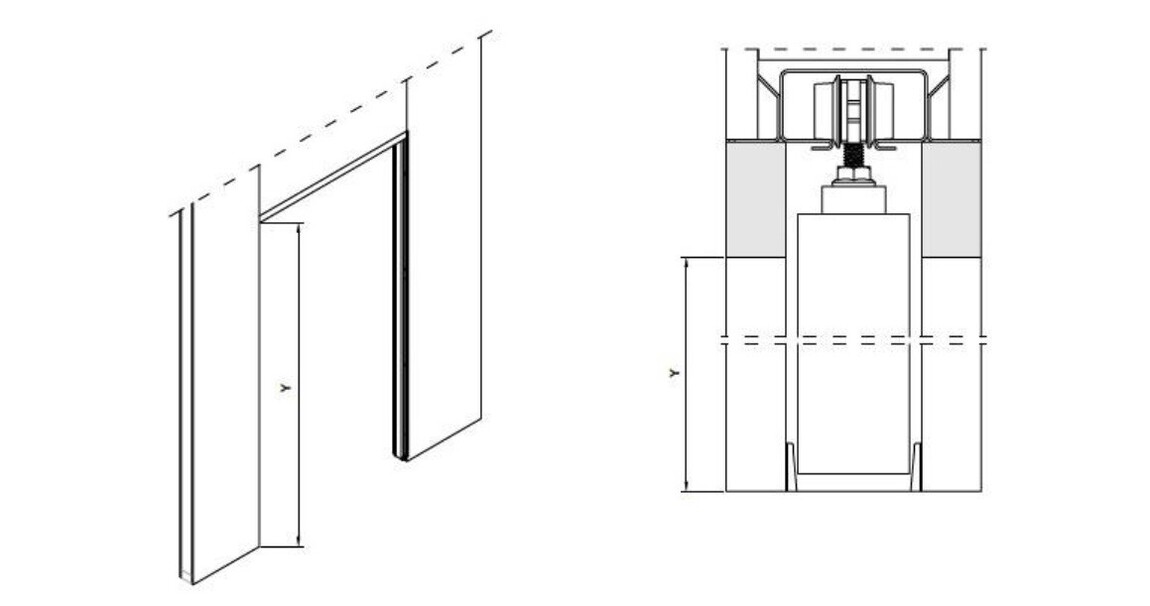

Measuring Part B
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371591.jpg?t=1710010924)
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371592.jpg?t=1710010924)

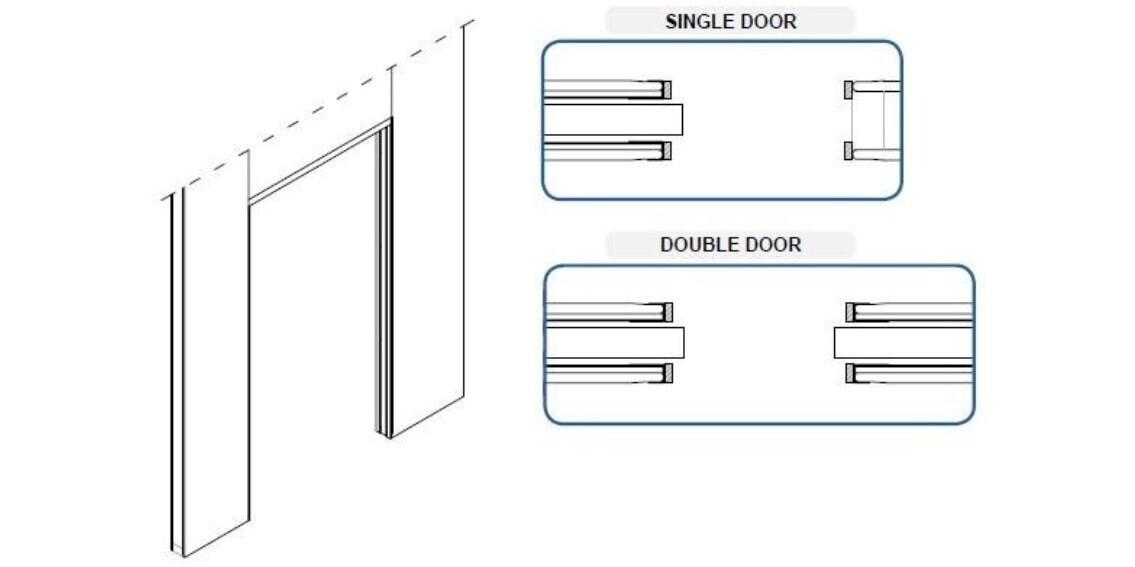

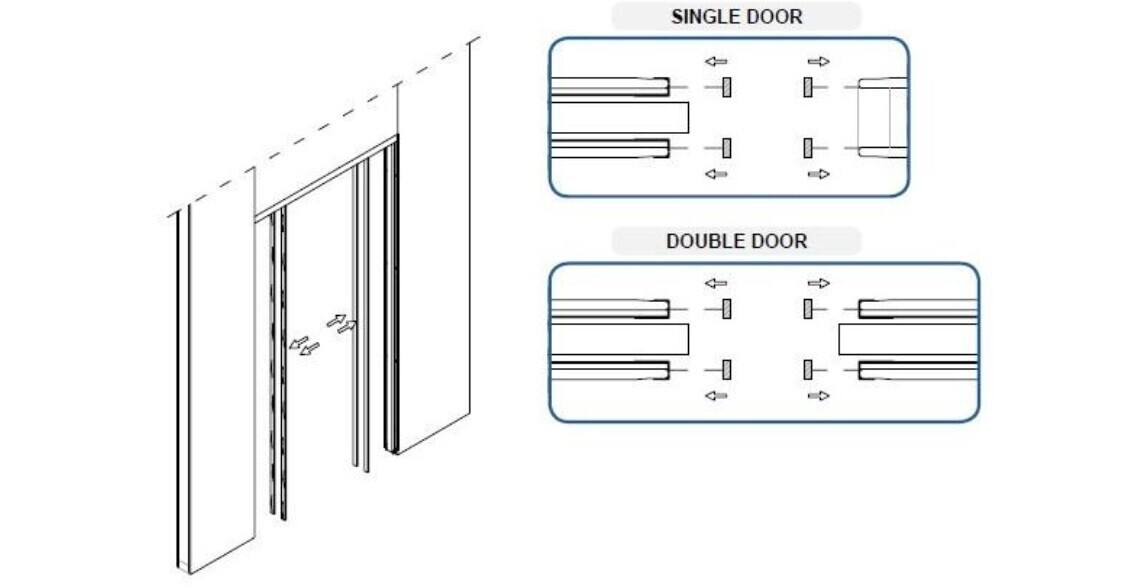

Attaching part B to the frame
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371594.jpg?t=1710010924)
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371595.jpg?t=1710010924)

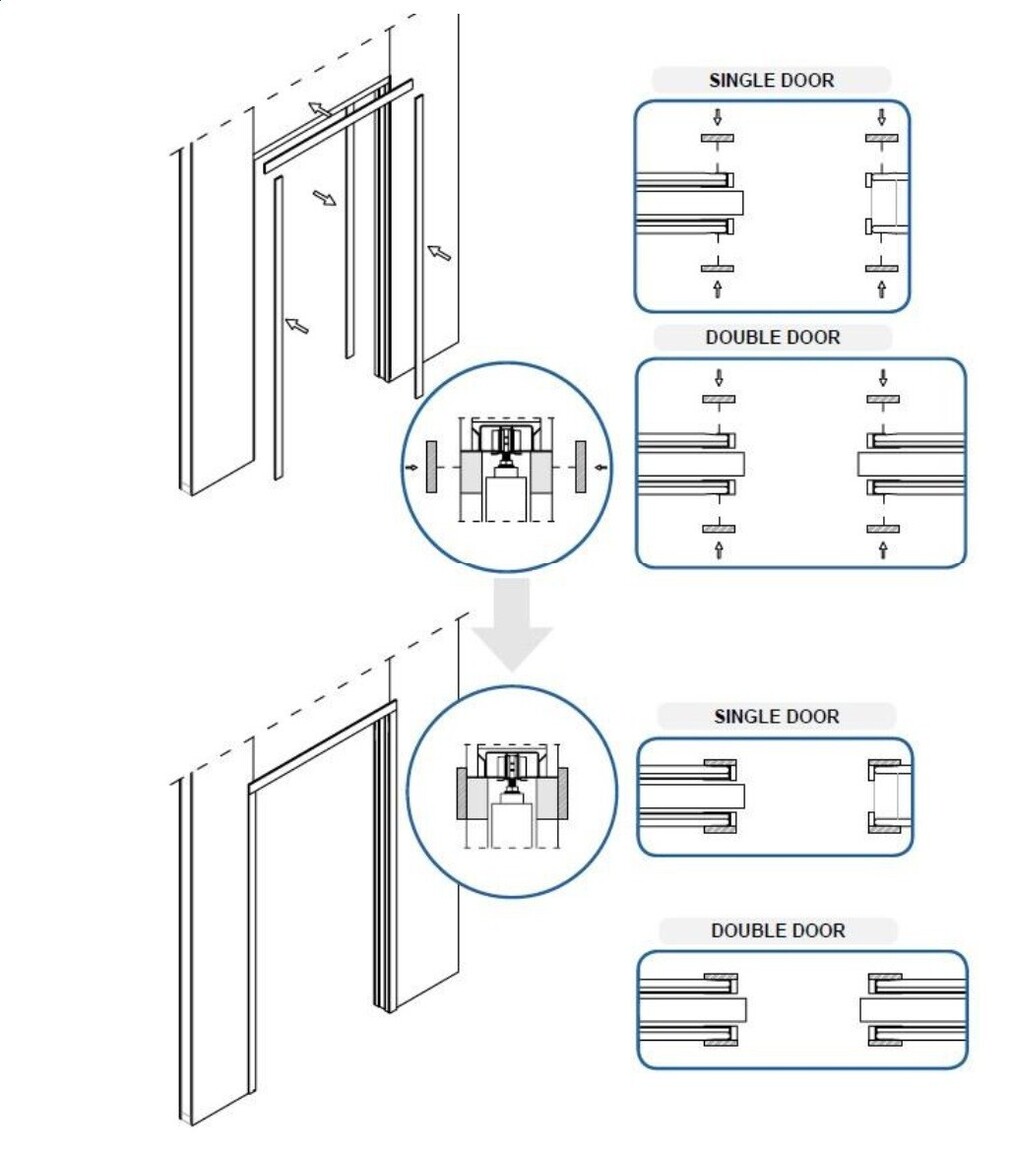

Finishing Off With Your Preferred Architrave
![Pocket Door Tech Info](https://s3.eu-west-1.amazonaws.com/cdn.webfactore.co.uk/sr_1371599.jpg?t=1710010924)
