Eclisse Fire Rated Pocket Door Kits

£630.00 exc VAT
Qty

(select NONE if no Single Kits required) Kit Designed To Suit 100mm Finished Wall Thickness. Max door panel weight: Up to 100Kg

(select NONE if no Double Kits required) Kit Designed To Suit 120mm Finished Wall

Maintenance-free track and runners.

Fully adjustable front and rear doorstop

Runners are tested to 100,000 cycles

Anti-warp door profile

Self-centering floor guide

15 year guarantee

Fully tested and approved by International Fire Consultants PAR/10057/01 Revision F

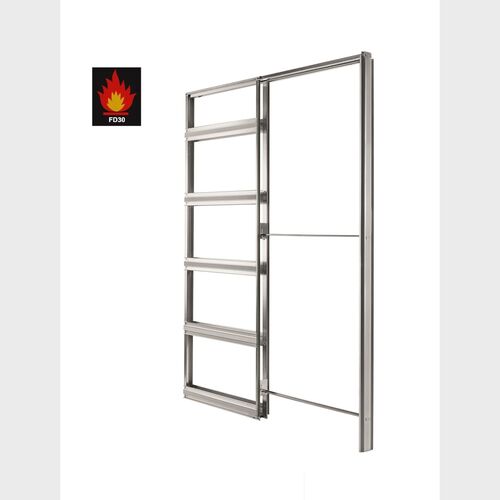

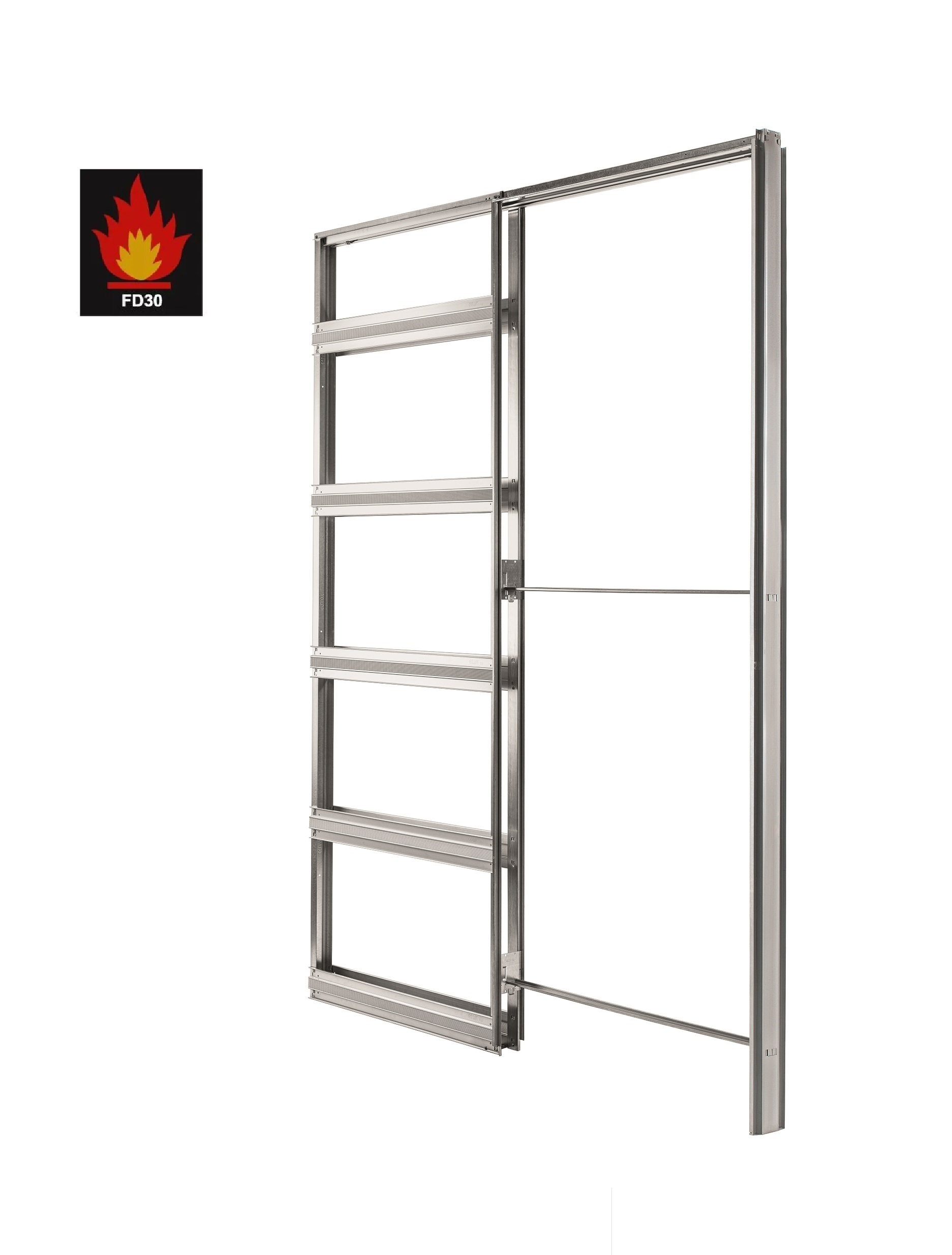

The independently fire-tested and certified Eclisse Pocket Door System - Fire-Rated Single (FD30)

This sliding pocket door system includes all the benefits of the standard Eclisse Classic Pocket Door System plus a specially designed jamb/architrave kit made from a high-density slow burning hardwood.

Certified for use with the following 44mm FD30 door panels (not supplied) under field of application report PAR /10057/01 Revision F
JELD-WEN: See approved range - Midland Building Products, Travis Perkins, B&Q, Magnet, Howdens and many online door suppliers
XL JOINERY: See approved range - available from many online door suppliers
Vicaima - See approved range
Vibrant Doors - See approved range

Emerald Doors - Bespoke FD30 Door Leaves - please refer to 3.5.6 of Field of Application Report PAR /10057/01 Revision F

Compatible and certified for use with the BIAS Soft-Close Anti-Slam and Self Closer

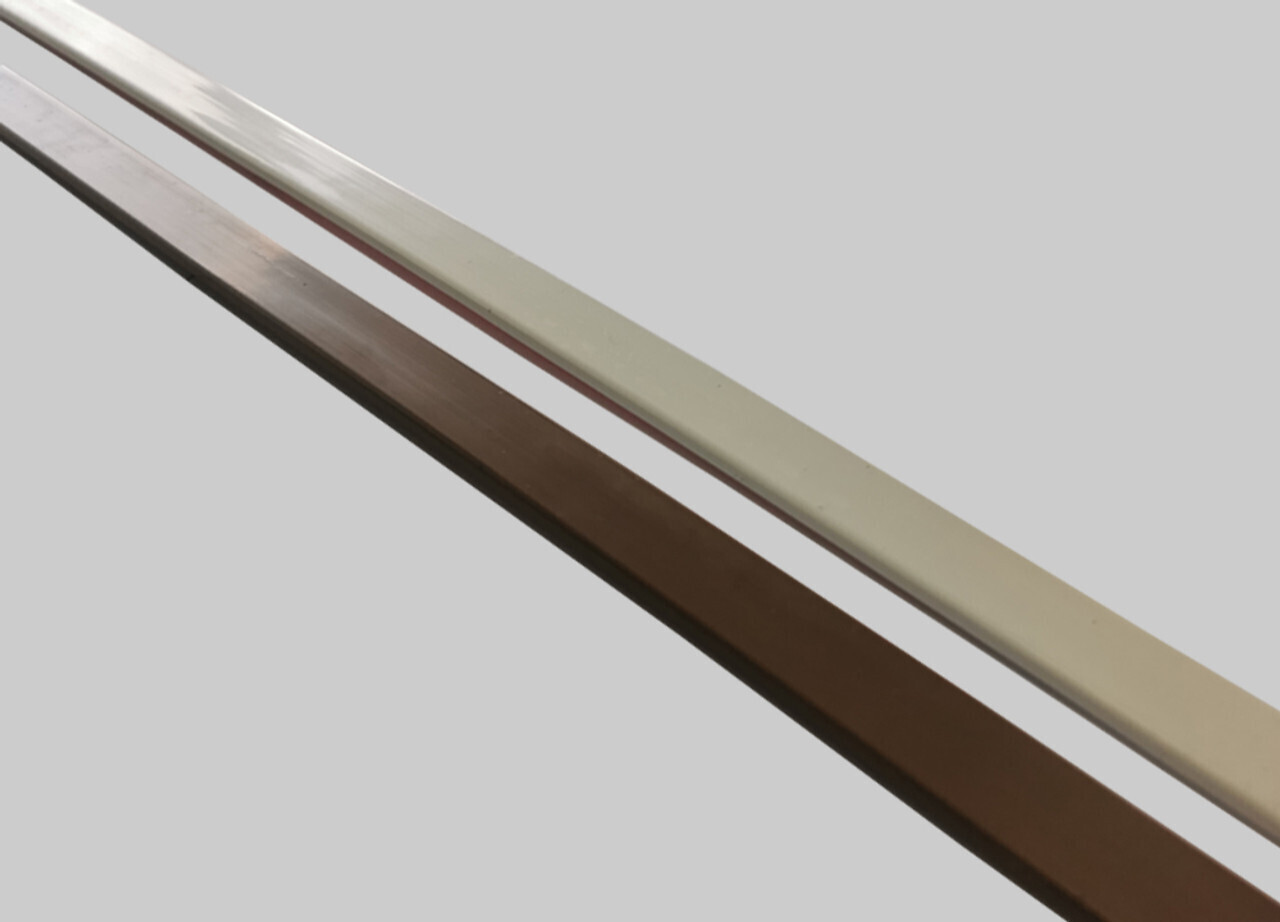

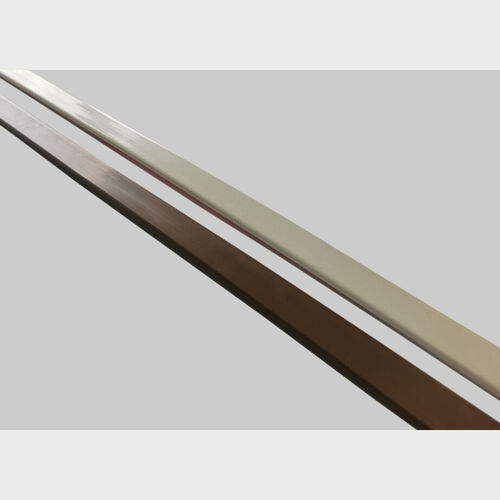

Now includes a choice of white or brown intumescent seals
Door Furniture: Please see above links for compatible and approved door furniture.

Note: The frame is 75mm and requires one layer of 12.5mm Type F plasterboard either side to give a finished wall thickness of 100mm.

Refer to the report below for information on which non-essential hardware (i.e. push plates, kick plates, handles) has been approved for use.

If you would like any further information regarding the FD30 pocket door systems, please contact the customer service team on 0333 5770828.

Download Field of Application Report PAR /10057/01 Revision F

PRICING & SIZING
Not sure which size you need? Have a look at this
!SINGLE DOOR SIZE CHART & TECHNICAL SPEC
DOULE DOOR SIZE CHART & TECHNICAL SPEC Still have questions? Call our friendly Customer Services Team on 07964262113.
PLEASE NOTE INBUILT TOLERANCE - If setting out your studwork before delivery of your frame please note there is approximately an 8mm tolerance built into the height of these pocket door systems which you will need to take into account. Packers may be required to accommodate for this gap if you are unable to adjust the studwork above the system. Note: Frame should be installed at finished floor level.

DELIVERY
Order online before 12pm on a weekday for a next working day delivery to UK mainland.
For delivery to islands, Highlands, N Ireland and ROI please contact us.

Need more information? Just send us a quick email info@doormate.co.uk

ACCESSORIES
A fully approved self-closing mechanism is available. Please check first with your Building Inspector prior to ordering to determine whether or not your particular application will require a self-closer.
BIAS Soft-Close with Anti-Slam (optional) Available from our Eclisse Accessories Page
Handles- refer to the IFC-Field of Application Report for information on installation.
