DM-200 Bi-Parting

£399.00 exc VAT
Qty

Track length = 4 x Door Width.
Note: Your door should always be wider & higher than the opening
minimum of 40mm per side & 40mm above
(if the exact track length isn't there, please select the next size up and we will cut it down to your length for free of charge)

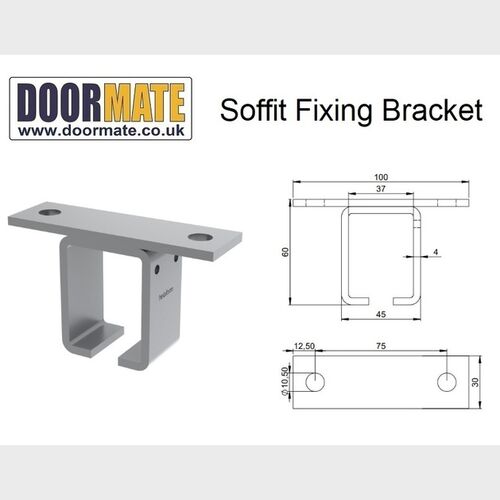

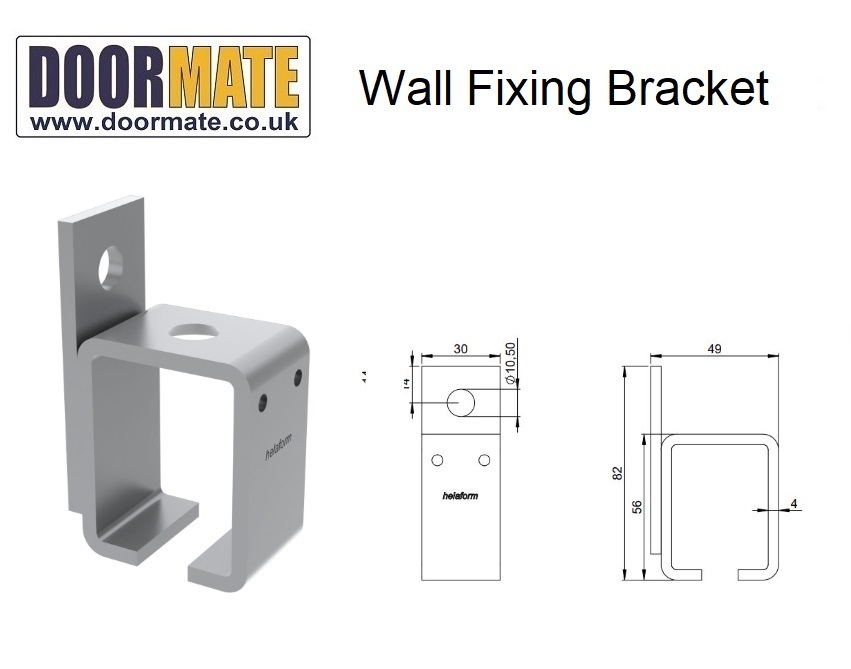

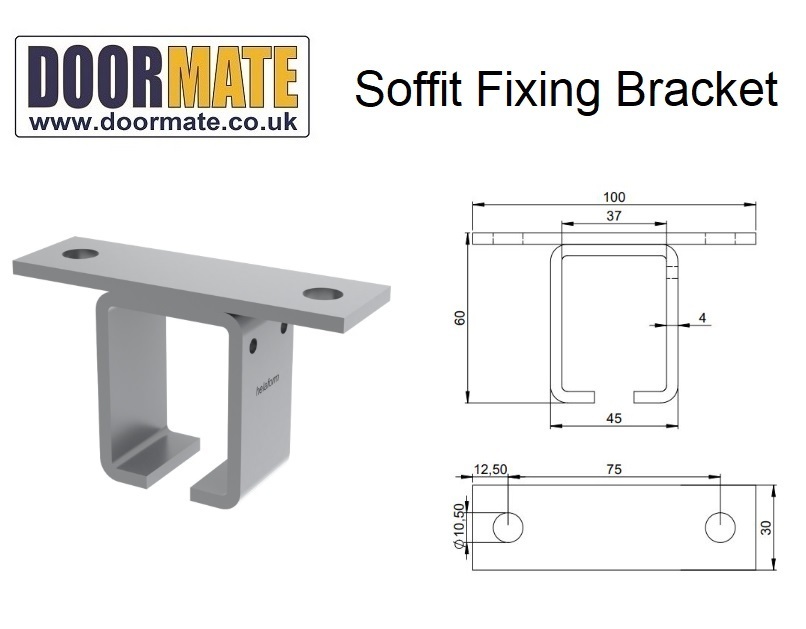

You can choose to fix the system to the wall or under the soffit.
Fixing points are to be installed at a maximum of 600mm intervals.
The number of brackets depend on the track length
The track can also be fixed directly to the solid ceiling or timber joists

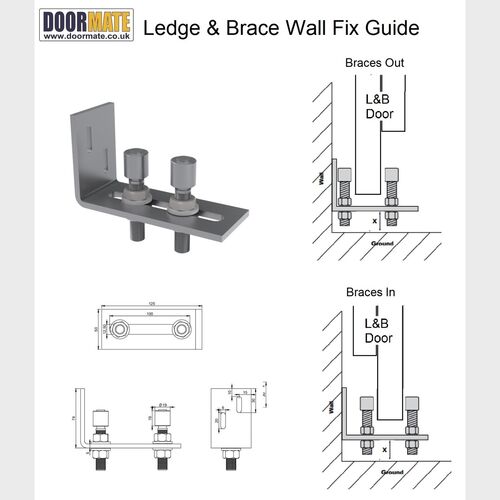

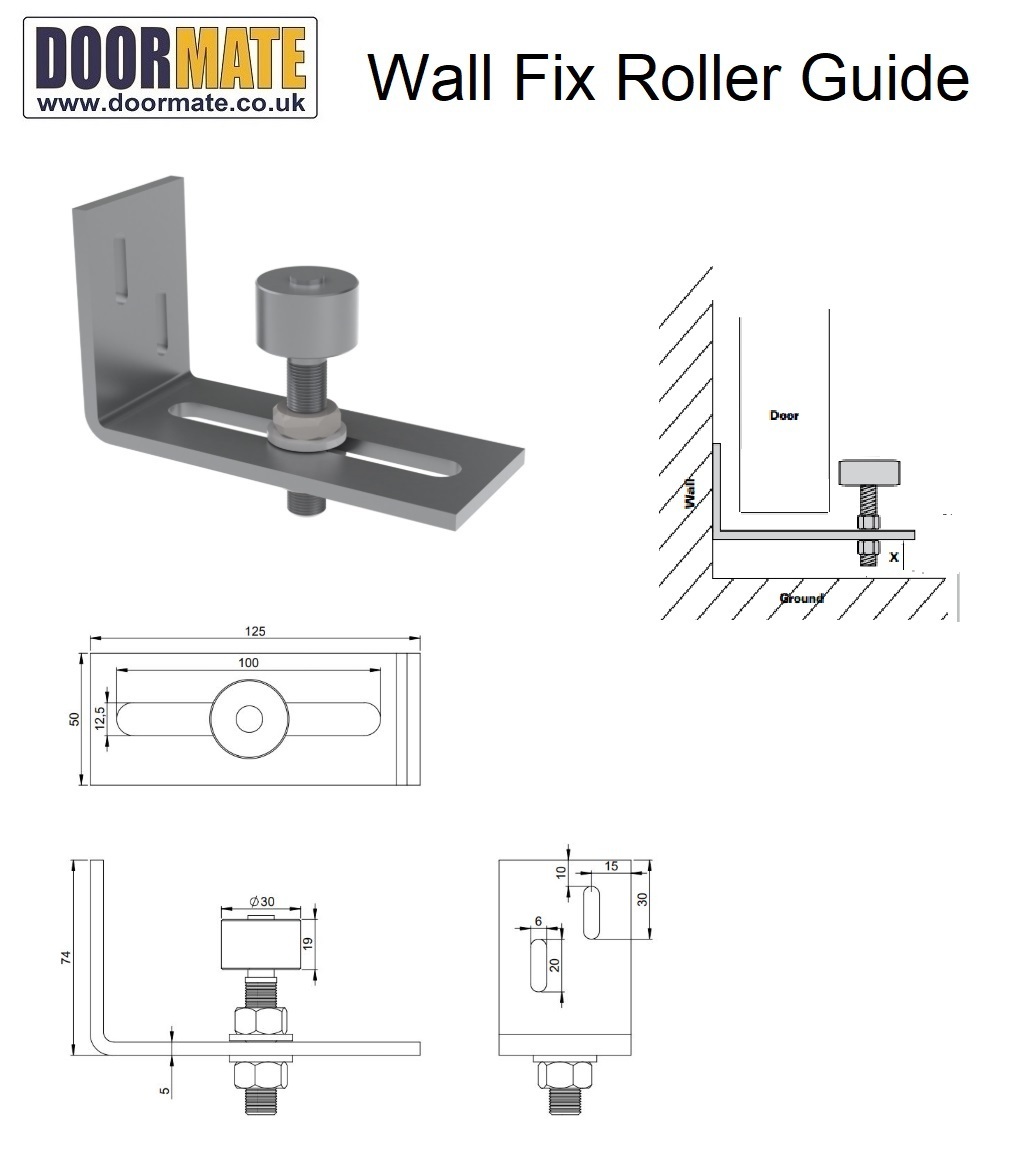

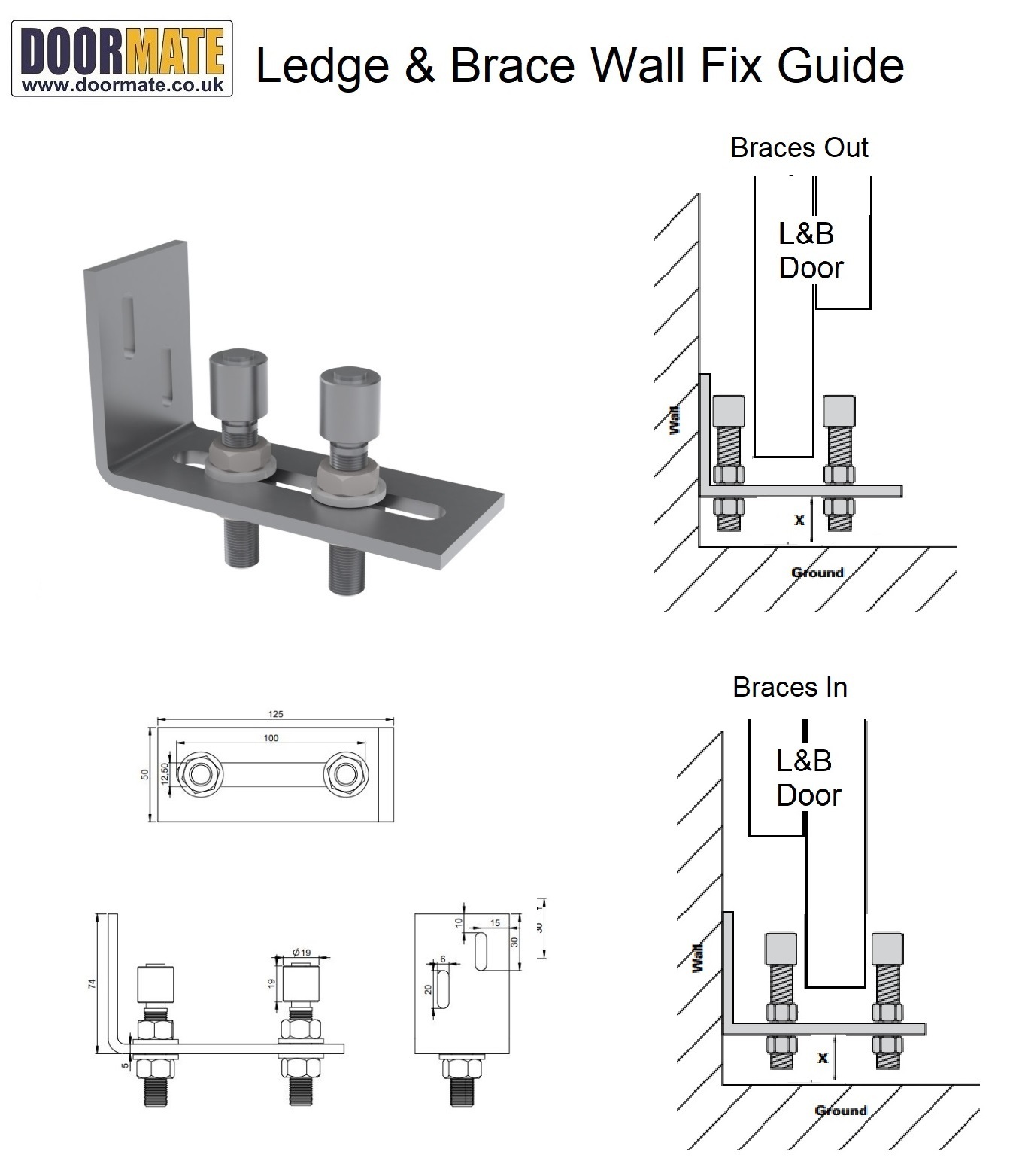

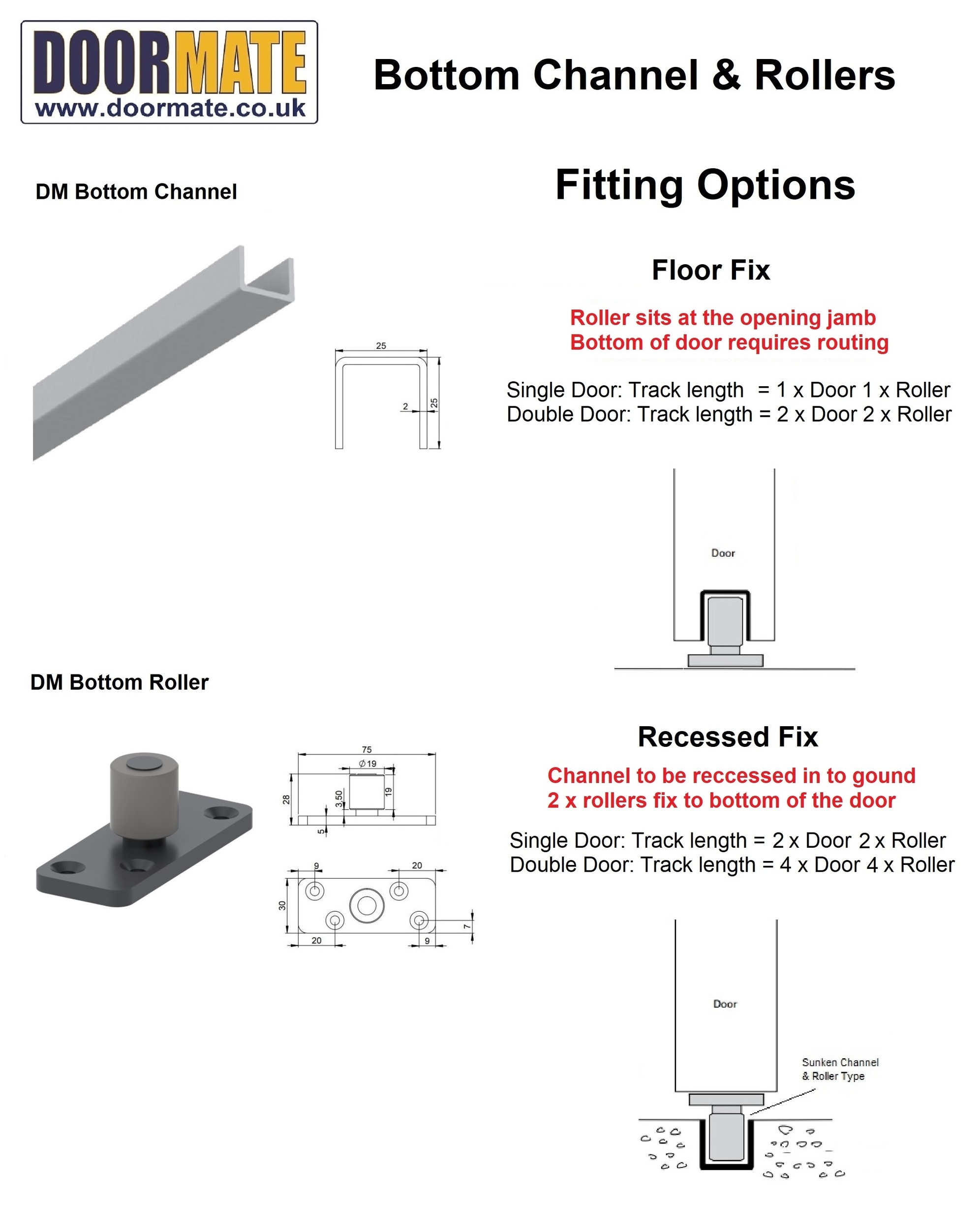

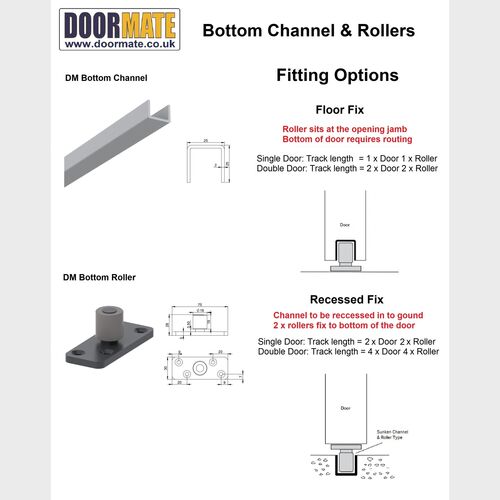

A Bottom Guide ensures faultless and safe operation of the door and also prevents the door from swinging/Flapping

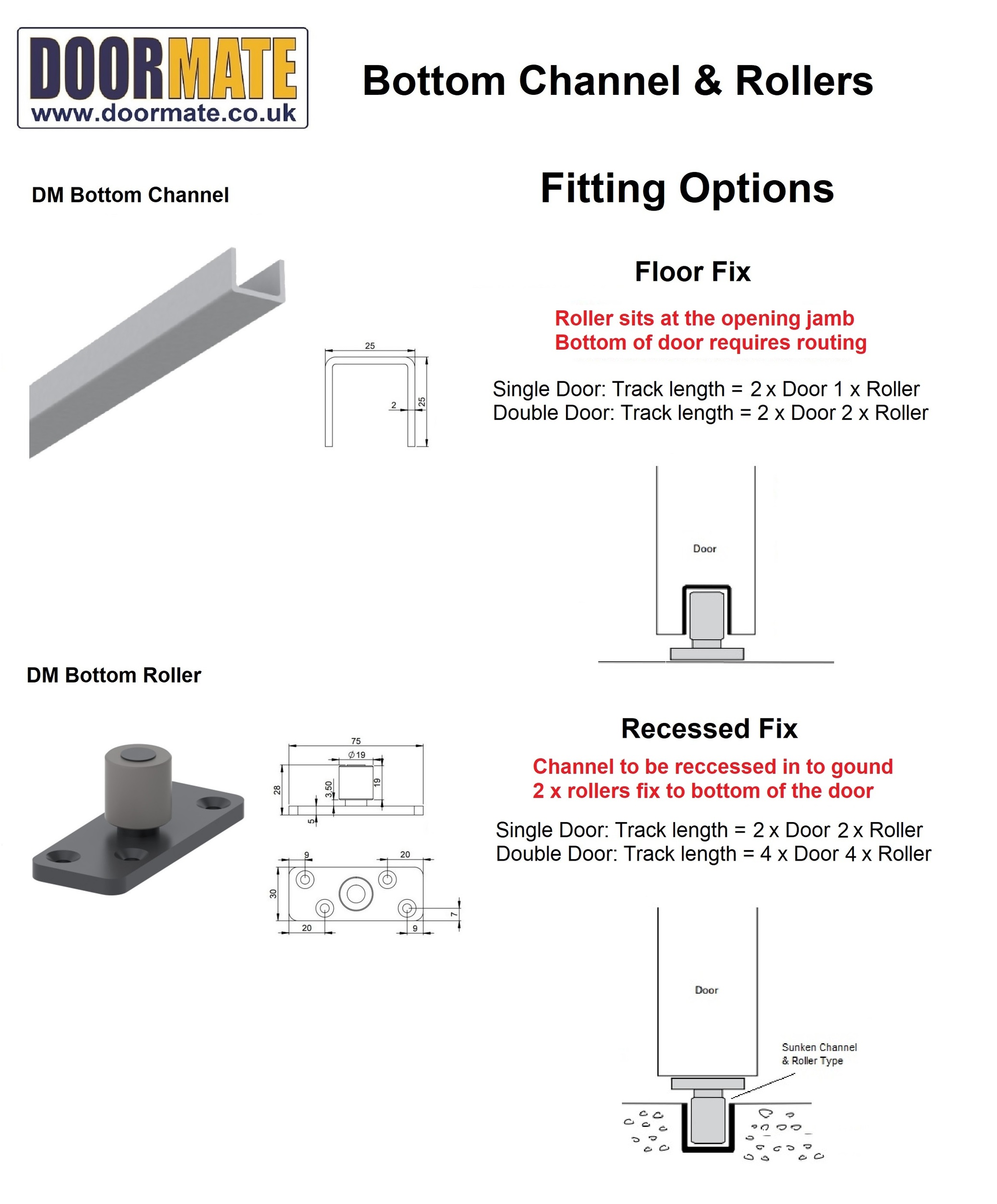

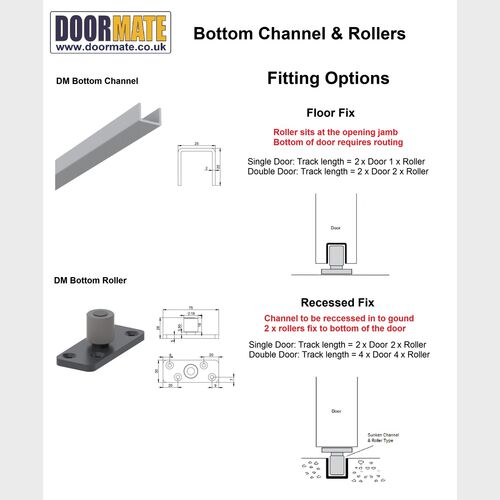

Please Note: The Bottom Channel will need to be recessed into floor to avoid trip hazards

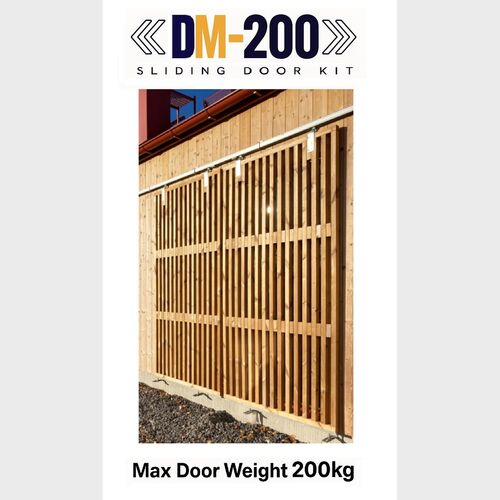

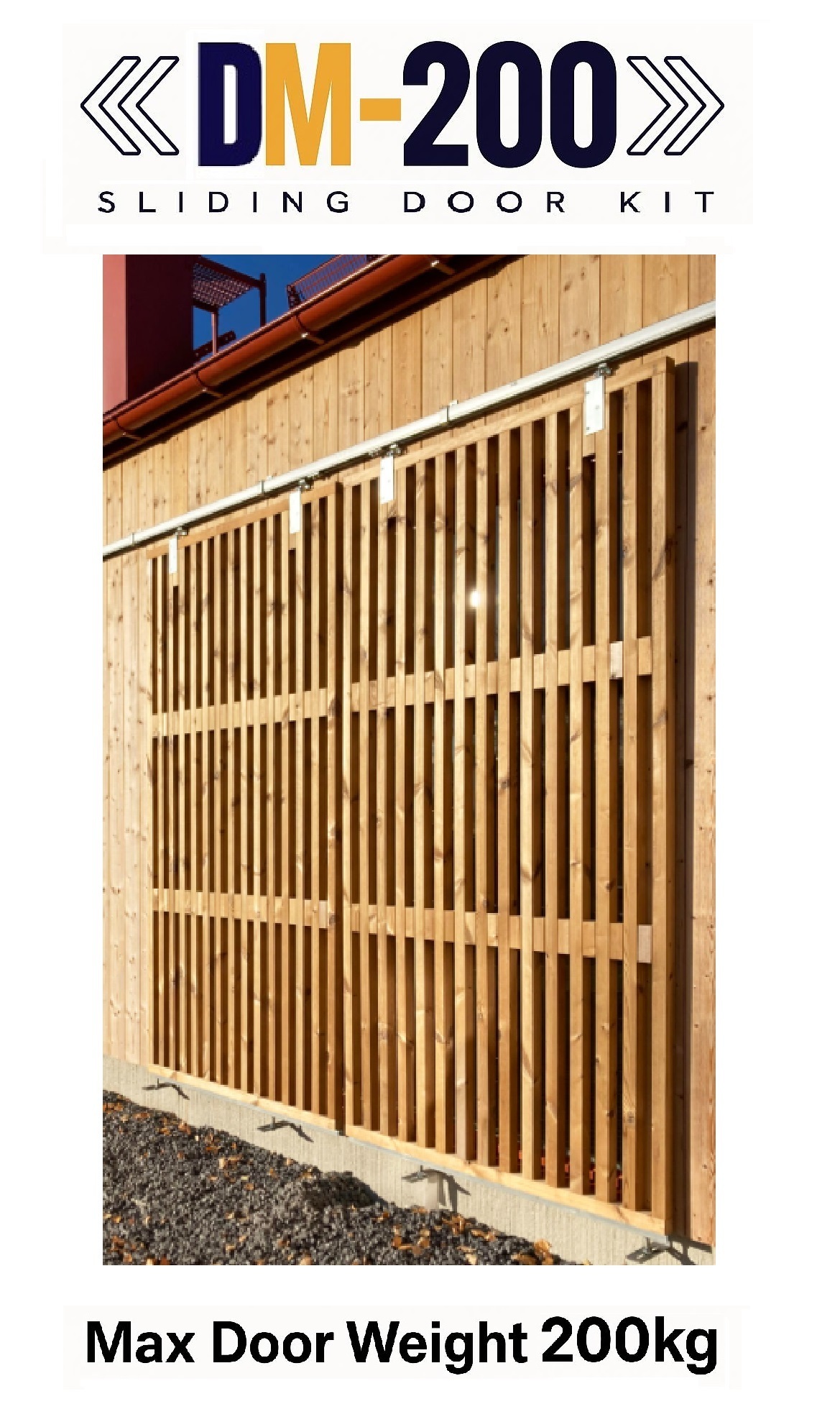

Supports sliding doors up to 200kg

Smooth and reliable sliding mechanism

Galvanised Weather-resistant for exterior use

Durable construction for long-lasting performance

Ideal For Garage doors

Suita residential agricultural and commercial projects

DM-200e Bi-Parting
Enhance your outdoor living space with our DM-200e Bi-Parting external sliding door kit.
designed for doors up to 200kg, such as garage doors, barns, commercial, stables or warehouse, security cage doors. Can Be Wall fixed or Soffit fixed

Typical Standard Kit Includes

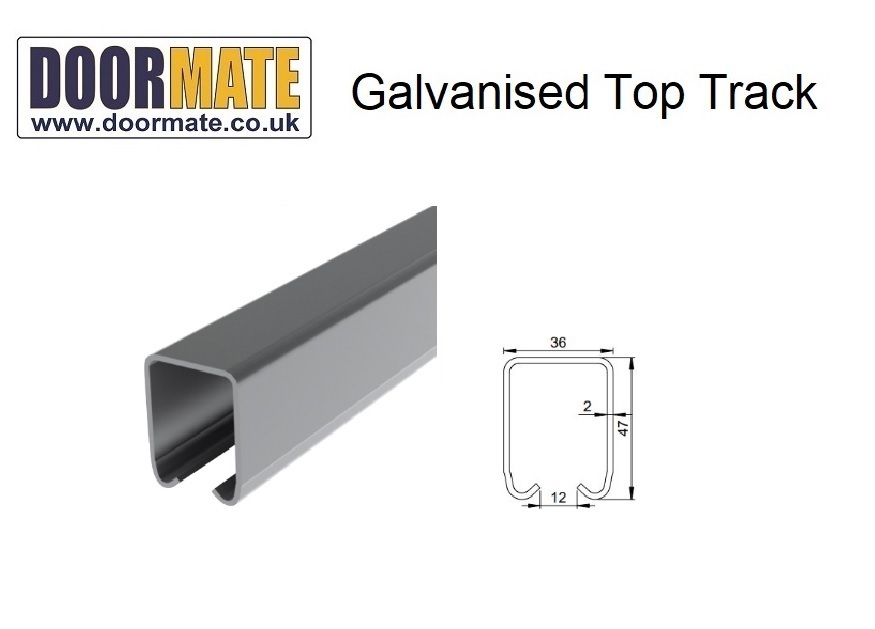

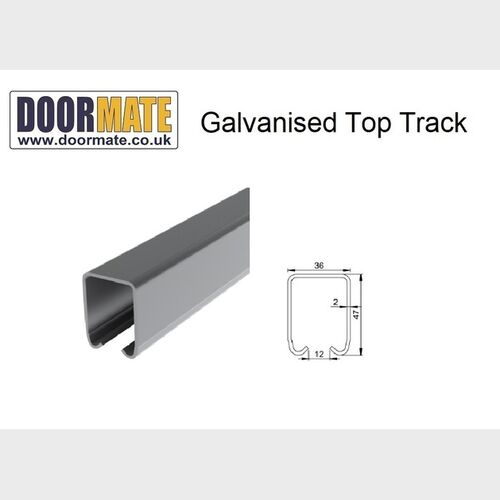

1 x Galvanised top track

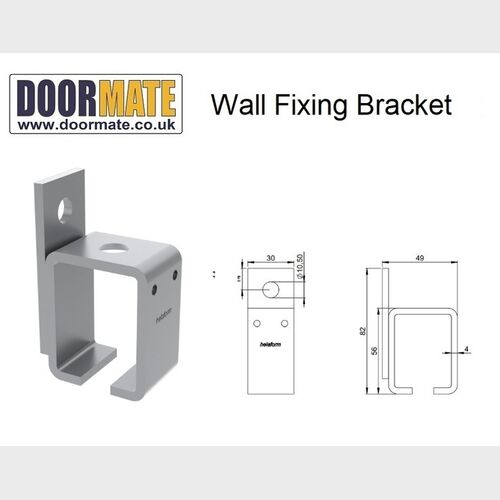

? x Track Fixing Brackets (varies on track length)

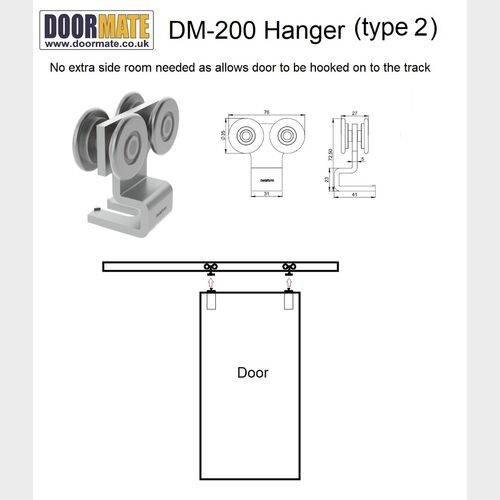

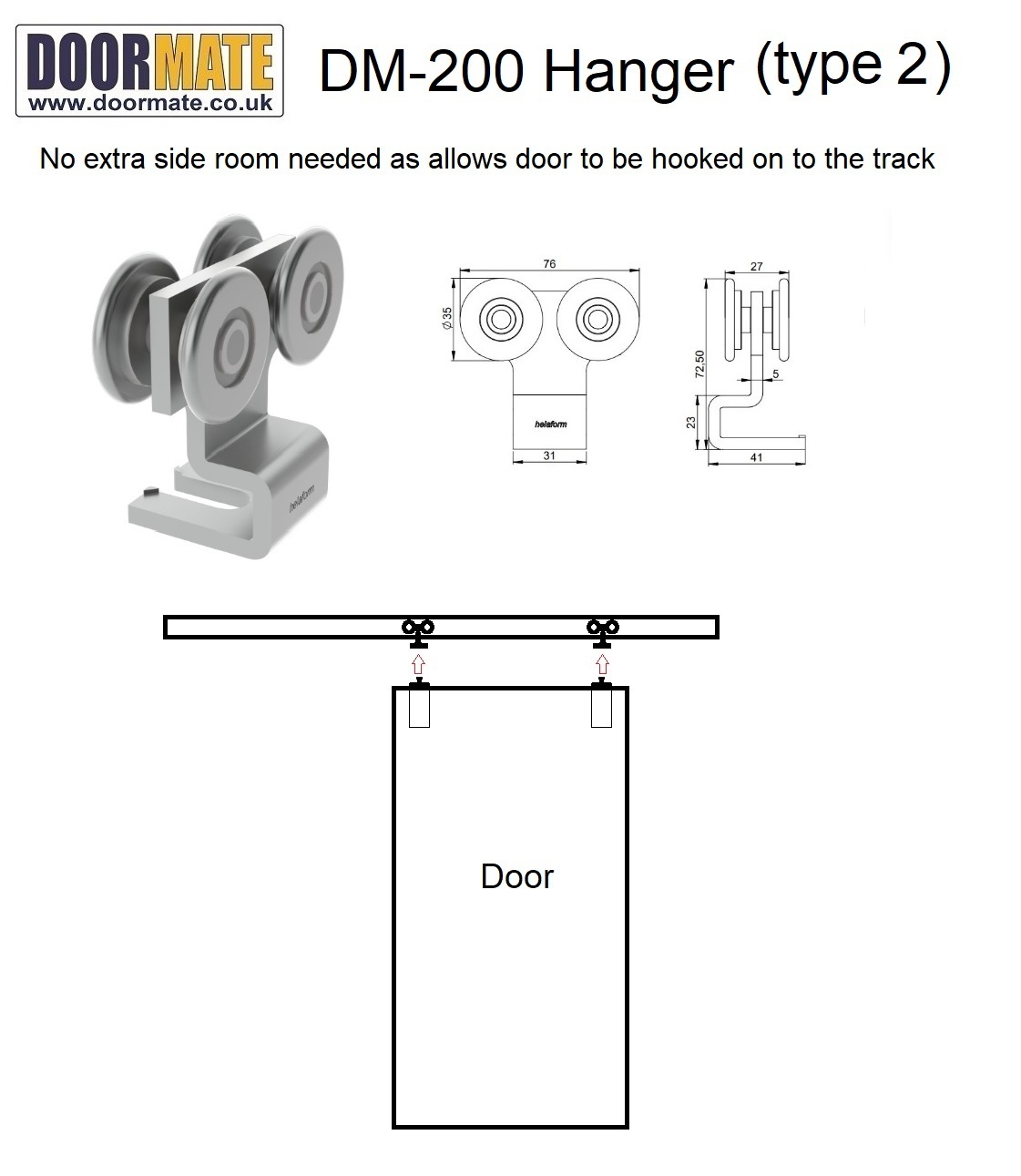

4 x Four Wheeled Steel Rollers

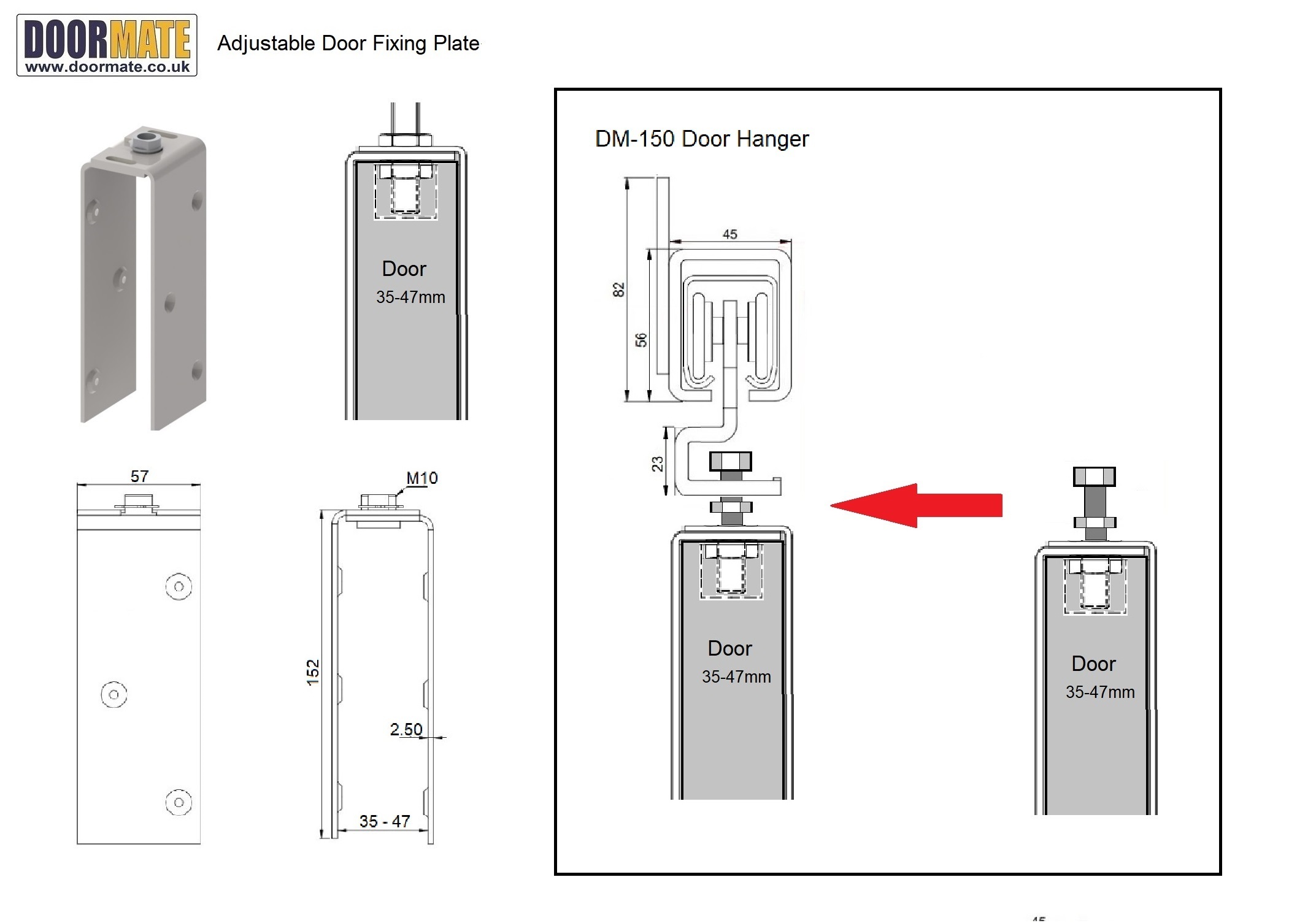

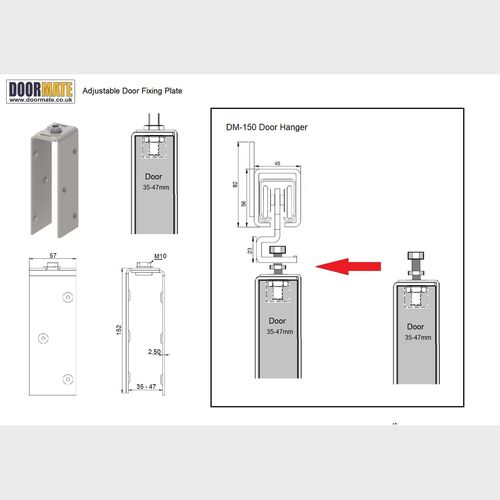

4 x Adjustable Door Plates
2 x Bottom Guides

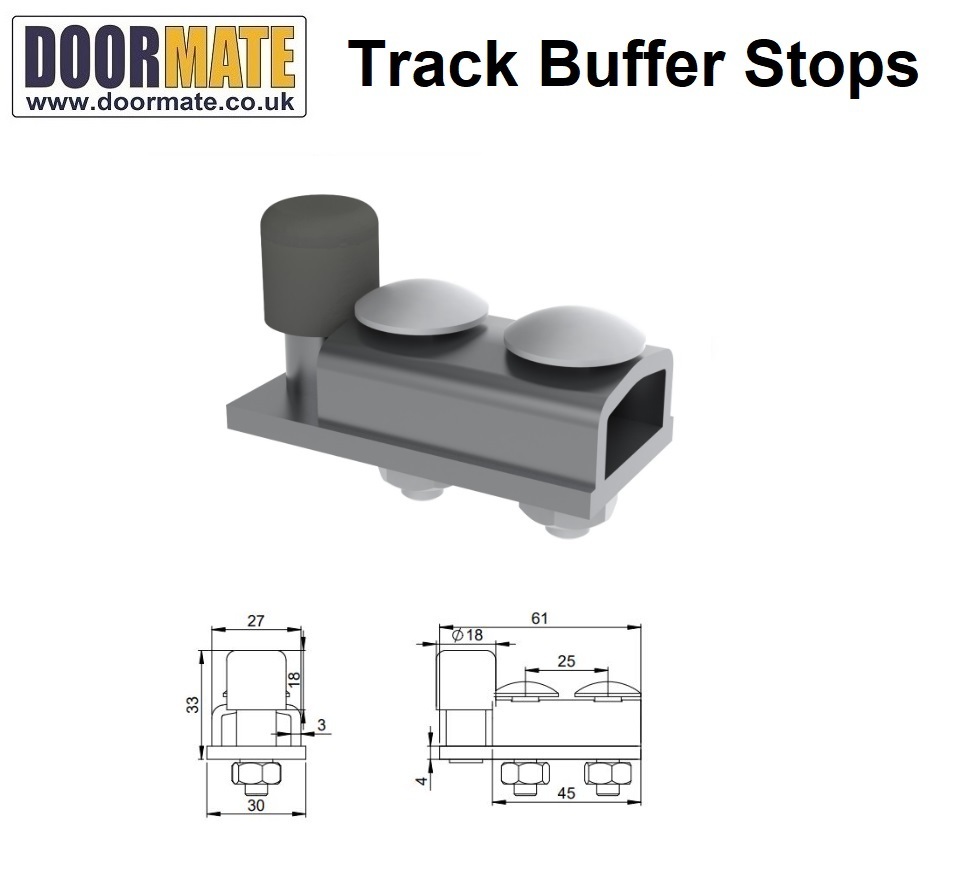

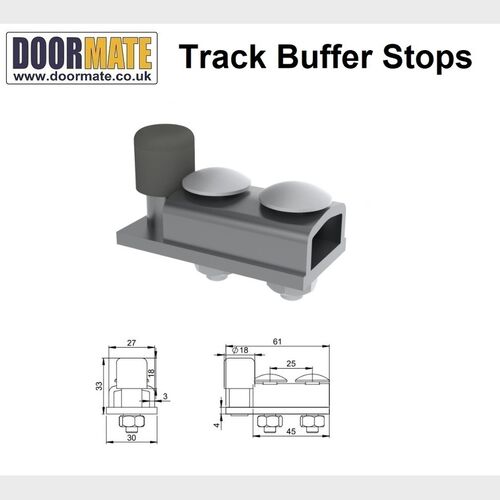

2 x Track Buffer Stops

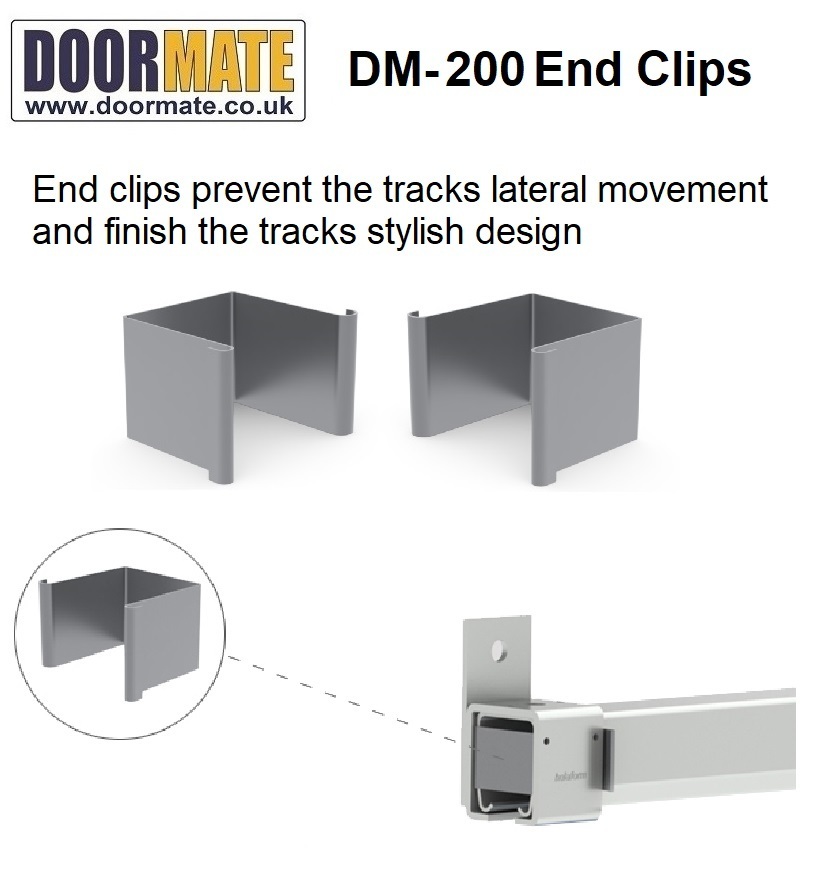

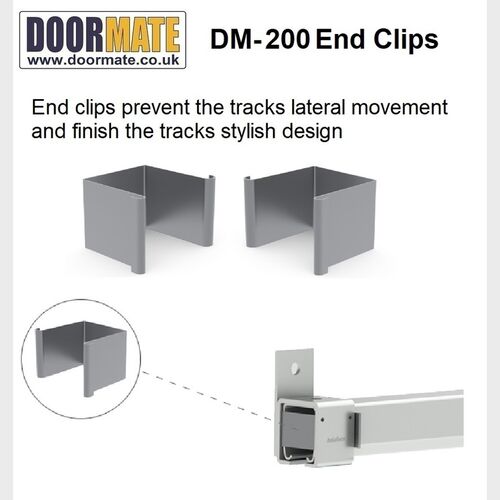

2 x End Clips
1 x Fitting Instructions
